Lub cev muaj zog rotary theem yog ib qho kev tswj xyuas qhov tseeb tsim los tig lub platform, qauv, optic, lossis workpiece nyob ib ncig ntawm ib qho axis ruaj khov nrog cov neeg siab, rov ua dua, thiab kev tswj xyuas. Tsis zoo li ib qho yooj yim turntable los yog phau ntawv rotary theem uas tso siab rau kev hloov kho ntawm tes, lub tshuab hluav taws xob tig siv lub tshuab hluav taws xob-feem ntau yog stepper, servo, los yog ncaj qha -tsav lub cev muaj zog- ua ke nrog bearings, tsav mechanism, thiab feem ntau yog ib qho encoder kom xa cov angular positioning.
Hauv chav kuaj, kev lag luam, thiab OEM chaw, lub tshuab hluav taws xob tig ua rau muaj kev ntseeg siab, txhais tes- kev sib hloov dawb uas tshem tawm cov neeg siv khoom sib txawv thiab txhawb kev sib koom ua ke rau hauv cov tshuab hluav taws xob loj dua. Txawm hais tias ua raws li kev kho qhov muag, tshuaj xyuas wafers, lossis tso cov qauv hauv qab lub tshuab ntsuas, lub tshuab hluav taws xob tig muab cov kev tswj kev sib hloov ntawm kev ywj pheej uas cov theem kab ib leeg tsis tuaj yeem xa.
Yuav ua li cas lub Motorized Rotary Stage ua haujlwm
Ntawm nws cov tub ntxhais, ib theem motorized rotary muaj lub rotating platform (lub rooj los yog sab saum toj phaj) txhawb los ntawm ib tug bearing system uas txwv tsis pub txav mus rau ntshiab kev sib hloov ntawm lub hauv paus axis. Lub cev muaj zog muab torque, uas yog kis los ntawm ib tug tsav mechanism rau lub platform. Cov lus teb cov khoom siv xws li kho qhov muag encoders lossis Hall- cuam tshuam cov sensors qhia angular txoj hauj lwm rau tus tswj kev txav, ua kom kaw- voj lossis qhib - lub voj voog ua haujlwm.
Common drive architectures muaj xws li:

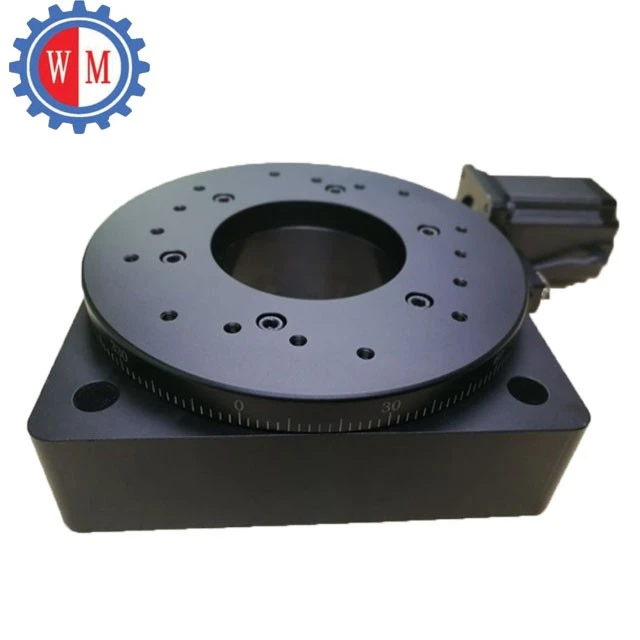

Kab laum- iav tsav: Ib qho kev ua kom raug kab mob meshes nrog cov cab iav txuas rau lub rooj tig. Qhov kev tsim no muab lub zog siab, tus kheej - muaj peev xwm kaw tau (tseem ceeb rau kev tuav offset loads), thiab qhov chaw zoo nruj ntawm qhov nrawm nrawm. Ntau lub lag luam motorized teb theem qauv siv preloaded anti-backlash worm iav rau kev txhim kho bidirectional repeatability.

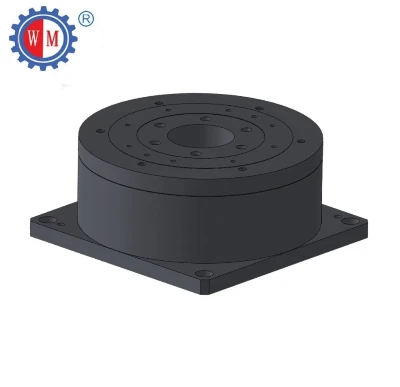

Direct-tsav tshuab: Lub cev muaj zog torque yog txuas ncaj qha mus rau lub rooj rotating uas tsis muaj kev cuam tshuam lub zog. Cov theem no muab xoom rov qab, siab tshaj qhov ceev, smoother tshaj tawm, thiab kev ua haujlwm zoo heev, ua rau lawv zoo tagnrho rau kev soj ntsuam tas li lossis siab -throughput applications.
Txoj siv sia lossis lwm yam kev sib kis: Tsawg dua rau ultra- ua haujlwm zoo tab sis muaj txiaj ntsig zoo thaum sib npaug ntawm tus nqi, nrawm, thiab dhau los ntawm - qhov yuav tsum muaj qhov loj me.
Cov kev xaiv kabmob ntxiv qhia txog kev ua tau zoo. Hla-cov menyuam bearings muab siab nruj thiab muaj peev xwm thauj khoom nrog kev sib txhuam qis. Pob bearings yog tus nqi -zoo rau cov khoom sib dua. Cua bearings tshem tawm txhua yam kev sib cuag tag nrho, xa tshwj xeeb runout, wobble, thiab lub neej kev ua tau zoo rau kev siv metrology thiab semiconductor.
Ntau lub tshuab hluav taws xob teb theem tsim tsim muaj qhov nruab nrab aperture (hollow core). Qhov no los ntawm - qhov tso cai rau cov cables, kab teeb, kab nqus, lossis txoj hauv kev kho qhov muag kom dhau los ntawm cov axis ntawm kev sib hloov- tseem ceeb rau cov theem hauv tshuab ntsuas, lub tshuab laser, thiab cov pob qij txha.
Cov ntsiab lus tseem ceeb ntawm kev ua haujlwm ntawm Motorized Rotary Stage
Thaum ntsuam xyuas lub motorized rotary theem, engineers feem ntau tshuaj xyuas:
Kev daws teeb meem thiab qhov tsawg kawg nkaus incremental tsab ntawv tsa suab: Yuav ua li cas cov theem tau zoo, feem ntau los ntawm ob peb arcseconds mus rau micro-radians nrog microstepping lossis siab - daws teeb meem encoders.
Qhov tseeb thiab rov ua tau zoo: Qhov tseeb tiag (yuav ua li cas kaw cov theem mus txog lub kaum sab xis) thiab bidirectional lossis unidirectional repeatability. High- theem kawg ua tiav ntawm ob peb arcseconds lossis zoo dua.
Load peev: Axial, radial, thiab lub caij thauj khoom ntsuas. Industrial motorized rotary stage model lis kaum mus rau pua pua kilos, thaum kuaj versions txhawb lighter optics los yog kuaj.
Ceev thiab acceleration: worm- theem iav feem ntau ua haujlwm ntawm qis RPM nrog lub zog siab; ncaj qha - tsav theem tuaj yeem ncav cuag ntau pua RPM.
Wobble, runout, thiab flatness: Geometric yuam kev uas cuam tshuam rau qhov zoo ntawm kev sib hloov, tshwj xeeb tshaj yog tseem ceeb hauv kev siv optical thiab metrology.
Vacuum los yog cleanroom compatibility: Ntau lub tuam txhab muab cov qauv tsim nyog rau lub tshuab nqus tsev ib puag ncig lossis cov khoom siv qis dua - outgassing.
Cov kev qhia tshwj xeeb no txiav txim siab seb qhov muab lub tshuab hluav taws xob ua haujlwm puas haum rau kev tshuaj xyuas semiconductor, biomedical imaging, lossis industrial automation.
Motorized Rotary Stage vs. Manual Rotary Stage
Ib qho kev taw qhia rotary theem siv lub pob tes, feem ntau nrog cov cab cab thiab cov nplais kawm tiav, kom meej tab sis tus neeg teb xov tooj - nyob ntawm qhov chaw. Nws yog qhov yooj yim, pheej yig, thiab tsim nyog rau kev ua haujlwm raws sijhawm. Nyob rau hauv sib piv, ib tug motorized teb theem ntxiv ib lub cev muaj zog, xws li interface, thiab feem ntau tawm tswv yim. Qhov zoo yog qhov tseeb:
- Programmable motion profiles thiab sequences
- Siab dua repeatability nyob rau hauv ntau lub voj voog
- Muaj peev xwm ua haujlwm hauv cov khoom hnyav lossis hauv qhov chaw nkag tsis tau
- Kev koom ua ke nrog ntau -axis systems thiab software
- Kev tshem tawm ntawm tib neeg kev ua yuam kev thiab qaug zog
- Thaum daim ntawv thov yuav tsum tau repositioning ntau zaus, synchronized multi-axis motion, los yog cov ntaub ntawv logging ntawm angular txoj hauj lwm, lub motorized teb theem yog cov nyiam kev daws teeb meem
Common Applications of Motorized Rotary Stages
Lub versatility ntawm lub motorized teb theem spans kev tshawb fawb thiab kev lag luam:
Optics thiab photonics
Polarizers, waveplates, lim, thiab laser Cheebtsam yog niaj zaus tig nrog siab angular precision. Lub tshuab hluav taws xob teb theem tswj kev ruaj ntseg zoo thaum uas tso cai rau kev ua kom zoo tshaj plaws ntawm polarization lossis txoj kab nqaj.
Microscopy thiab life sciences
Cov qauv kev sib hloov nyob rau hauv lub microscope ua rau ntau- lub kaum sab xis duab, fluorescence cov txheej txheem, thiab nyob - kev soj ntsuam ntawm tes. Cov theem nrog cov apertures loj thiab qis profiles sib koom ua ke yooj yim rau hauv inverted lossis upright microscope teeb.
Semiconductor thiab metrology
Kev tshuaj xyuas wafer, scribing, ntsuas ntsuas, thiab ntsuas qhov tseeb yog nyob ntawm qhov tseeb qhov chaw. Direct-tsav thiab huab cua- bearing motorized rotary theem qauv xa qhov ceev thiab geometric fidelity xav tau rau siab -throughput ntau lawm.
Automation, robotics, thiab kev tsim khoom
Indexing tables, plaub-axis CNC motions, sib dhos fixtures, thiab kuaj chaw siv robust motorized rotary theem tsim muaj peev xwm ntawm tas mus li kev sib hloov thiab ntau yam payload.
Lwm yam teb
Aerospace tivthaiv kev sim, kev tsim khoom siv kho mob, thiab kev ntsuas kev tshawb fawb txhua yam tau txais txiaj ntsig los ntawm kev tswj kev sib hloov ib theem motorized rotary muab.
Xaiv txoj cai Motorized Rotary Stage
- Xaiv qhov tsim nyog motorized rotary theem pib nrog daim ntawv thov:
- Kev taw qhia (ntu, kab rov tav, lossis inverted) thiab ua rau cov khoom thauj khoom.
- Yuav tsum tau muaj tseeb, ceev, thiab nruam piv rau intermittent motion.
- Payload loj, qhov hnyav, thiab seb qhov nruab nrab ntawm qhov loj yog offset.
- Xav tau ib tug los ntawm aperture thiab nws txoj kab uas hla.
- Environmental constraints (nqus, cleanroom, kub ntau).
- Tswj interface nyiam (stepper vs. servo, integrated controller, encoder type).
- Kab laum- iav motorized teb theem qauv ua tau zoo thaum tuav lub zog siab thiab nruab nrab ceev yog xav tau. Direct- tsav theem ci nyob rau hauv siab -ceev, qis-backlash, los yog nruam-scan scenarios. Kev sab laj cov chaw tsim khoom xaiv cov lus qhia thiab daim ntawv thov engineers pab cuam lub sijhawm rau lub hnab ntawv tshwj xeeb thiab kev ua haujlwm.
Cov txiaj ntsig zoo thiab yav tom ntej Trends
Cov txiaj ntsig tseem ceeb ntawm lub tshuab hluav taws xob teb yog qhov tseeb, automation, thiab kev ntseeg tau. Thaum configured, theem executes complex angular sequences nrog sib xws uas phau ntawv txoj kev yuav tsis phim. Cov qauv tsim niaj hnub no nce ntxiv cov tswj kev sib xyaw ua ke, cov encoders kiag li, thiab kev sib txuas hauv network kom yooj yim rau kev sib koom ua ke.
Saib tom ntej, kev nce qib hauv kev ncaj qha- tsav lub cev muaj zog, huab cua- cov kabmob thev naus laus zis, thiab kev cog lus siab - kev daws teeb meem encoders txuas ntxiv thawb kev ua haujlwm ciam teb. Lub tshuab nqus tsev- tau tshaj thiab ultra-qis-profile motorized rotary theem variants nthuav dav siv rau hauv cov teb tshiab xws li quantum optics thiab cov ntim khoom semiconductor siab heev.
Nyob rau hauv cov ntsiab lus, ib theem motorized teb yog ib tug tshwj xeeb qhov chaw platform uas muab qhov tseeb, automated rotation txog ib axis. Los ntawm kev sib txuas lub cev muaj zog, precision bearings, tsav mechanism, thiab kev tawm tswv yim, nws daws cov kev sib tw angular motion thoob plaws optics, microscopy, semiconductor manufacturing, metrology, thiab industrial automation. Kev nkag siab txog cov qauv kev ua haujlwm, kev ntsuas kev ua tau zoo, thiab cov kev xav tau ntawm daim ntawv thov tso cai rau cov kws ua haujlwm thiab cov kws tshawb fawb xaiv thiab xa mus rau txoj cai motorized rotary theem rau lawv cov kev xav tau, ua tiav qhov rov ua dua thiab tswj cov txheej txheem precision niaj hnub xav tau.
